Altair 8800 and IMSAI 8080
10:43 AM 0 Comments
Development of the single-chip microprocessor was an enormous catalyst to the popularization of cheap, easy to use, and truly personal computers. The Altair 8800, introduced in a Popular Electronics magazine article in the January 1975 issue, at the time set a new low price point for a computer, bringing computer ownership to an admittedly select market in the 1970s. This was followed by the IMSAI 8080 computer, with similar abilities and limitations. The Altair and IMSAI were essentially scaled-down minicomputers and were incomplete: to connect a keyboard or teletype to them required heavy, expensive "peripherals". These machines both featured a front panel with switches and lights, which communicated with the operator in binary. To program the machine after switching it on the bootstrap loader program had to be entered, without error, in binary, then a paper tape containing a BASIC interpreter loaded from a paper-tape reader. Keying the loader required setting a bank of eight switches up or down and pressing the "load" button, once for each byte of the program, which was typically hundreds of bytes long. The computer could run BASIC programs once the interpreter had been loaded.
The MITS Altair 8800 effectively created a new industry of microcomputers and computer kits, with many others following, such as a wave of small business computers in the late 1970s based on the Intel 8080, Zilog Z80 and Intel 8085 microprocessor chips. Most ran the CP/M-80 operating system developed by Gary Kildall at Digital Research. CP/M-80 was the first popular microcomputer operating system to be used by many different hardware vendors, and many software packages were written for it, such as WordStar and dBase II.
Many hobbyists during the mid 1970s designed their own systems, with various degrees of success, and sometimes banded together to ease the job. Out of these house meetings the Homebrew Computer Club developed, where hobbyists met to talk about what they had done, exchange schematics and software, and demonstrate their systems. Many people built or assembled their own computers as per published designs. For example, many thousands of people built the Galaksija home computer later in the early 80s.
It was arguably the Altair computer that spawned the development of Apple, as well as Microsoft which produced and sold the Altair BASIC programming language interpreter, Microsoft's first product. The second generation of microcomputers, those that appeared in the late 1970s, sparked by the unexpected demand for the kit computers at the electronic hobbyist clubs, were usually known as home computers. For business use these systems were less capable and in some ways less versatile than the large business computers of the day. They were designed for fun and educational purposes, not so much for practical use. And although you could use some simple office/productivity applications on them, they were generally used by computer enthusiasts for learning to program and for running computer games, for which the personal computers of the period were less suitable and much too expensive. For the more technical hobbyists home computers were also used for electronics interfacing, such as controlling model railroads, and other general hobbyist pursuits.
Mainframes and minicomputers
8:20 AM 0 Comments
Before the introduction of the microprocessor in the early 1970s, computers were generally large, costly systems owned by large institutions: corporations, universities, government agencies, and the like. Users—who were experienced specialists—did not usually interact with the machine itself, but instead prepared tasks for the computer on off-line equipment, such as card punches. A number of assignments for the computer would be gathered up and processed in batch mode. After the jobs had completed, users could collect the output printouts and punched cards. In some organizations it could take hours or days between submitting a job to the computing center and receiving the output.
A more interactive form of computer use developed commercially by the middle 1960s. In a time-sharing system, multiple teletype terminals let many people share the use of one mainframe computer processor. This was common in business applications and in science and engineering
8:53 AM 0 Comments
At the other end of the computing spectrum from the microcomputers, the powerful supercomputers of the era also used integrated circuit technology. In 1976 the Cray-1 was developed by Seymour Cray, who had left Control Data in 1972 to form his own company. This machine, the first supercomputer to make vector processing practical, had a characteristic horseshoe shape, to speed processing by shortening circuit paths. Vector processing, which uses one instruction to perform the same operation on many arguments, has been a fundamental supercomputer processing method ever since. The Cray-1 could calculate 150 million floating point operations per second (150 megaflops). 85 were shipped at a price of $5 million each. The Cray-1 had a CPU that was mostly constructed of SSI and MSI ECL ICs.
The basis of the fourth generation was the invention of the microprocessor by a team at Intel.
9:31 AM 0 Comments
Unlike third generation minicomputers, which were essentially scaled down versions of mainframe computers, the fourth generation's origins are fundamentally different. Microprocessor-based computers were originally very limited in their computational ability and speed, and were in no way an attempt to downsize the minicomputer. They were addressing an entirely different market.
Although processing power and storage capacities have grown beyond all recognition since the 1970s, the underlying technology of large-scale integration (LSI) or very-large-scale integration (VLSI) microchips has remained basically the same, so it is widely regarded that most of today's computers still belong to the fourth generation.
A typical Busicom desk calculator
But a new Intel employee (Ted Hoff) convinced Busicom to instead accept a general purpose computer chip which, like all computers, could be reprogrammed for many different tasks (like controlling a keyboard, a display, a printer, etc.). Intel argued that since the chip could be reprogrammed for alternative purposes, the cost of developing it could be spread out over more users and hence would be less expensive to each user. The general purpose computer is adapted to each new purpose by writing a program which is a sequence of instructions stored in memory (which happened to be Intel's forte). Busicom agreed to pay Intel to design a general purpose chip and to get a price break since it would allow Intel to sell the resulting chip to others. But development of the chip took longer than expected and Busicom pulled out of the project. Intel knew it had a winner by that point and gladly refunded all of Busicom's investment just to gain sole rights to the device which they finished on their own.
5:35 PM 0 Comments
Thus became the Intel 4004, the first microprocessor (uP). The 4004 consisted of 2300 transistors and was clocked at 108 kHz (i.e., 108,000 times per second). Compare this to the 42 million transistors and the 2 GHz clock rate (i.e., 2,000,000,000 times per second) used in a Pentium 4. One of Intel's 4004 chips still functions aboard the Pioneer 10 spacecraft, which is now the man-made object farthest from the earth. Curiously, Busicom went bankrupt and never ended up using the ground-breaking microprocessor.
Intel followed the 4004 with the 8008 and 8080. Intel priced the 8080 microprocessor at $360 dollars as an insult to IBM's famous 360 mainframe which cost millions of dollars. The 8080 was employed in the MITS Altair computer, which was the world's first personal computer (PC). It was personal all right: you had to build it yourself from a kit of parts that arrived in the mail. This kit didn't even include an enclosure and that is the reason the unit shown below doesn't match the picture on the magazine cover.
The original IBM Personal Computer (PC)
This transformation was a result of the invention of the microprocessor. A microprocessor (uP) is a computer that is fabricated on an integrated circuit (IC). Computers had been around for 20 years before the first microprocessor was developed at Intel in 1971. The micro in the name microprocessor refers to the physical size. Intel didn't invent the electronic computer. But they were the first to succeed in cramming an entire computer on a single chip (IC). Intel was started in 1968 and initially produced only semiconductor memory (Intel invented both the DRAM and the EPROM, two memory technologies that are still going strong today). In 1969 they were approached by Busicom, a Japanese manufacturer of high performance calculators (these were typewriter sized units, the first shirt-pocket sized scientific calculator was the Hewlett-Packard HP35 introduced in 1972). Busicom wanted Intel to produce 12 custom calculator chips: one chip dedicated to the keyboard, another chip dedicated to the display, another for the printer, etc. But integrated circuits were (and are) expensive to design and this approach would have required Busicom to bear the full expense of developing 12 new chips since these 12 chips would only be of use to them.
7:35 AM 0 Comments
An IBM Key Punch machine which operates like a typewriter except it produces punched cards rather than a printed sheet of paper
University students in the 1970's bought blank cards a linear foot at a time from the university bookstore. Each card could hold only 1 program statement. To submit your program to the mainframe, you placed your stack of cards in the hopper of a card reader. Your program would be run whenever the computer made it that far. You often submitted your deck and then went to dinner or to bed and came back later hoping to see a successful printout showing your results. Obviously, a program run in batch mode could not be interactive.
8:20 AM 0 Comments
But things changed fast. By the 1990's a university student would typically own his own computer and have exclusive use of it in his dorm room.
Three views of paper tape
9:08 AM 0 Comments
Paper tape has a long history as well. It was first used as an information storage medium by Sir Charles Wheatstone, who used it to store Morse code that was arriving via the newly invented telegraph (incidentally, Wheatstone was also the inventor of the accordion).
The alternative to time sharing was batch mode processing, where the computer gives its full attention to your program. In exchange for getting the computer's full attention at run-time, you had to agree to prepare your program off-line on a key punch machine which generated punch cards.
The Teletype was the standard mechanism used to interact with a time-sharing computer
A teletype was a motorized typewriter that could transmit your keystrokes to the mainframe and then print the computer's response on its roll of paper. You typed a single line of text, hit the carriage return button, and waited for the teletype to begin noisily printing the computer's response (at a whopping 10 characters per second). On the left-hand side of the teletype in the prior picture you can observe a paper tape reader and writer (i.e., puncher). Here's a close-up of paper tape:
8:16 AM 0 Comments
The IBM 7094, a typical mainframe computer [photo courtesy of IBM]
9:55 AM 0 Comments
A reel-to-reel tape drive [photo courtesy of The Computer Museum]
ENIAC was unquestionably the origin of the U.S. commercial computer industry, but its inventors, Mauchly and Eckert, never achieved fortune from their work and their company fell into financial problems and was sold at a loss. By 1955 IBM was selling more computers than UNIVAC and by the 1960's the group of eight companies selling computers was known as "IBM and the seven dwarfs". IBM grew so dominant that the federal government pursued anti-trust proceedings against them from 1969 to 1982 (notice the pace of our country's legal system). You might wonder what type of event is required to dislodge an industry heavyweight. In IBM's case it was their own decision to hire an unknown but aggressive firm called Microsoft to provide the software for their personal computer (PC). This lucrative contract allowed Microsoft to grow so dominant that by the year 2000 their market capitalization (the total value of their stock) was twice that of IBM and they were convicted in Federal Court of running an illegal monopoly.
9:44 AM 0 Comments
If you learned computer programming in the 1970's, you dealt with what today are called mainframe computers, such as the IBM 7090 (shown below), IBM 360, or IBM 370.
HAL from the movie "2001: A Space Odyssey". Look at the previous picture to understand why the movie makers in 1968 assumed computers of the future would be things you walk into.
JOHNNIAC was a reference to John von Neumann, who was unquestionably a genius. At age 6 he could tell jokes in classical Greek. By 8 he was doing calculus. He could recite books he had read years earlier word for word. He could read a page of the phone directory and then recite it backwards. On one occasion it took von Neumann only 6 minutes to solve a problem in his head that another professor had spent hours on using a mechanical calculator. Von Neumann is perhaps most famous (infamous?) as the man who worked out the complicated method needed to detonate an atomic bomb.
10:24 AM 0 Comments
Once the computer's program was represented electronically, modifications to that program could happen as fast as the computer could compute. In fact, computer programs could now modify themselves while they ran (such programs are called self-modifying programs). This introduced a new way for a program to fail: faulty logic in the program could cause it to damage itself. This is one source of the general protection fault famous in MS-DOS and the blue screen of death famous in Windows.
Today, one of the most notable characteristics of a computer is the fact that its ability to be reprogrammed allows it to contribute to a wide variety of endeavors, such as the following completely unrelated fields:
- the creation of special effects for movies,
- the compression of music to allow more minutes of music to fit within the limited memory of an MP3 player,
- the observation of car tire rotation to detect and prevent skids in an anti-lock braking system (ABS),
- the analysis of the writing style in Shakespeare's work with the goal of proving whether a single individual really was responsible for all these pieces.
ILLIAC II built at the University of Illinois
11:10 AM 0 Comments
it is a good thing computers were one-of-a-kind creations in these days, can you imagine being asked to duplicate this
Reprogramming ENIAC involved a hike (part 2)
Even with 18,000 vacuum tubes, ENIAC could only hold 20 numbers at a time. However, thanks to the elimination of moving parts it ran much faster than the Mark I: a multiplication that required 6 seconds on the Mark I could be performed on ENIAC in 2.8 thousandths of a second. ENIAC's basic clock speed was 100,000 cycles per second. Today's home computers employ clock speeds of 1,000,000,000 cycles per second. Built with $500,000 from the U.S. Army, ENIAC's first task was to compute whether or not it was possible to build a hydrogen bomb (the atomic bomb was completed during the war and hence is older than ENIAC). The very first problem run on ENIAC required only 20 seconds and was checked against an answer obtained after forty hours of work with a mechanical calculator. After chewing on half a million punch cards for six weeks, ENIAC did humanity no favor when it declared the hydrogen bomb feasible. This first ENIAC program remains classified even today.
9:01 AM 0 Comments
Once ENIAC was finished and proved worthy of the cost of its development, its designers set about to eliminate the obnoxious fact that reprogramming the computer required a physical modification of all the patch cords and switches. It took days to change ENIAC's program. Eckert and Mauchly's next teamed up with the mathematician John von Neumann to design EDVAC, which pioneered the stored program. Because he was the first to publish a description of this new computer, von Neumann is often wrongly credited with the realization that the program (that is, the sequence of computation steps) could be represented electronically just as the data was. But this major breakthrough can be found in Eckert's notes long before he ever started working with von Neumann. Eckert was no slouch: while in high school Eckert had scored the second highest math SAT score in the entire country.
After ENIAC and EDVAC came other computers with humorous names such as ILLIAC, JOHNNIAC, and, of course, MANIAC. ILLIAC was built at the University of Illinois at Champaign-Urbana, which is probably why the science fiction author Arthur C. Clarke chose to have the HAL computer of his famous book "2001: A Space Odyssey" born at Champaign-Urbana. Have you ever noticed that you can shift each of the letters of IBM backward by one alphabet position and get HAL?
Reprogramming ENIAC involved a hike (part 1)
(Once the army agreed to fund ENIAC, Mauchly and Eckert worked around the clock, seven days a week, hoping to complete the machine in time to contribute to the war. Their war-time effort was so intense that most days they ate all 3 meals in the company of the army Captain who was their liaison with their military sponsors. They were allowed a small staff but soon observed that they could hire only the most junior members of the University of Pennsylvania staff because the more experienced faculty members knew that their proposed machine would never work.
10:05 AM 0 Comments
One of the most obvious problems was that the design would require 18,000 vacuum tubes to all work simultaneously. Vacuum tubes were so notoriously unreliable that even twenty years later many neighborhood drug stores provided a "tube tester" that allowed homeowners to bring in the vacuum tubes from their television sets and determine which one of the tubes was causing their TV to fail. And television sets only incorporated about 30 vacuum tubes. The device that used the largest number of vacuum tubes was an electronic organ: it incorporated 160 tubes. The idea that 18,000 tubes could function together was considered so unlikely that the dominant vacuum tube supplier of the day, RCA, refused to join the project (but did supply tubes in the interest of "wartime cooperation"). Eckert solved the tube reliability problem through extremely careful circuit design. He was so thorough that before he chose the type of wire cabling he would employ in ENIAC he first ran an experiment where he starved lab rats for a few days and then gave them samples of all the available types of cable to determine which they least liked to eat. Here's a look at a small number of the vacuum tubes in ENIAC:
The Zuse Z1 in its residential setting
use's third machine, the Z3, built in 1941, was probably the first operational, general-purpose, programmable (that is, software controlled) digital computer. Without knowledge of any calculating machine inventors since Leibniz (who lived in the 1600's), Zuse reinvented Babbage's concept of programming and decided on his own to employ binary representation for numbers (Babbage had advocated decimal). The Z3 was destroyed by an Allied bombing raid. The Z1 and Z2 met the same fate and the Z4 survived only because Zuse hauled it in a wagon up into the mountains. Zuse's accomplishments are all the more incredible given the context of the material and manpower shortages in Germany during World War II. Zuse couldn't even obtain paper tape so he had to make his own by punching holes in discarded movie film. Because these machines were unknown outside Germany, they did not influence the path of computing in America. But their architecture is identical to that still in use today: an arithmetic unit to do the calculations, a memory for storing numbers, a control system to supervise operations, and input and output devices to connect to the external world. Zuse also invented what might be the first high-level computer language, "Plankalkul", though it too was unknown outside Germany.
10:18 AM 0 Comments
The title of forefather of today's all-electronic digital computers is usually awarded to ENIAC, which stood for Electronic Numerical Integrator and Calculator. ENIAC was built at the University of Pennsylvania between 1943 and 1945 by two professors, John Mauchly and the 24 year old J. Presper Eckert, who got funding from the war department after promising they could build a machine that would replace all the "computers", meaning the women who were employed calculating the firing tables for the army's artillery guns. The day that Mauchly and Eckert saw the first small piece of ENIAC work, the persons they ran to bring to their lab to show off their progress were some of these female computers (one of whom remarked, "I was astounded that it took all this equipment to multiply 5 by 1000").
ENIAC filled a 20 by 40 foot room, weighed 30 tons, and used more than 18,000 vacuum tubes. Like the Mark I, ENIAC employed paper card readers obtained from IBM (these were a regular product for IBM, as they were a long established part of business accounting machines, IBM's forte). When operating, the ENIAC was silent but you knew it was on as the 18,000 vacuum tubes each generated waste heat like a light bulb and all this heat (174,000 watts of heat) meant that the computer could only be operated in a specially designed room with its own heavy duty air conditioning system. Only the left half of ENIAC is visible in the first picture, the right half was basically a mirror image of what's visible.
Two views of ENIAC: the "Electronic Numerical Integrator and Calculator" (note that it wasn't even given the name of computer since "computers" were people) [U.S. Army photo]
To reprogram the ENIAC you had to rearrange the patch cords that you can observe on the left in the prior photo, and the settings of 3000 switches that you can observe on the right. To program a modern computer, you type out a program with statements like:
Circumference = 3.14 * diameter
To perform this computation on ENIAC you had to rearrange a large number of patch cords and then locate three particular knobs on that vast wall of knobs and set them to 3, 1, and 4.
Two views of the code-breaking Colossus of Great Britain
11:50 AM 0 Comments
The Harvard Mark I, the Atanasoff-Berry computer, and the British Colossus all made important contributions. American and British computer pioneers were still arguing over who was first to do what, when in 1965 the work of the German Konrad Zuse was published for the first time in English. Scooped! Zuse had built a sequence of general purpose computers in Nazi Germany. The first, the Z1, was built between 1936 and 1938 in the parlor of his parent's home.
The Atanasoff-Berry Computer
9:17 AM 0 Comments
Another candidate for granddaddy of the modern computer was Colossus, built during World War II by Britain for the purpose of breaking the cryptographic codes used by Germany. Britain led the world in designing and building electronic machines dedicated to code breaking, and was routinely able to read coded Germany radio transmissions. But Colossus was definitely not a general purpose, reprogrammable machine. Note the presence of pulleys in the two photos of Colossus below:
The DEC PDP-12
10:05 AM 0 Comments
Sure looks "mini", huh? But we're getting ahead of our story.
One of the earliest attempts to build an all-electronic (that is, no gears, cams, belts, shafts, etc.) digital computer occurred in 1937 by J. V. Atanasoff, a professor of physics and mathematics at Iowa State University. By 1941 he and his graduate student, Clifford Berry, had succeeded in building a machine that could solve 29 simultaneous equations with 29 unknowns. This machine was the first to store data as a charge on a capacitor, which is how today's computers store information in their main memory (DRAM or dynamic RAM). As far as its inventors were aware, it was also the first to employ binary arithmetic. However, the machine was not programmable, it lacked a conditional branch, its design was appropriate for only one type of mathematical problem, and it was not further pursued after World War II. It's inventors didn't even bother to preserve the machine and it was dismantled by those who moved into the room where it lay abandoned.
An integrated circuit
3:32 PM 0 Comments
The primary advantage of an integrated circuit is not that the transistors (switches) are miniscule (that's the secondary advantage), but rather that millions of transistors can be created and interconnected in a mass-production process. All the elements on the integrated circuit are fabricated simultaneously via a small number (maybe 12) of optical masks that define the geometry of each layer. This speeds up the process of fabricating the computer -- and hence reduces its cost -- just as Gutenberg's printing press sped up the fabrication of books and thereby made them affordable to all.
The IBM Stretch computer of 1959 needed its 33 foot length to hold the 150,000 transistors it contained. These transistors were tremendously smaller than the vacuum tubes they replaced, but they were still individual elements requiring individual assembly. By the early 1980s this many transistors could be simultaneously fabricated on an integrated circuit. Today's Pentium 4 microprocessor contains 42,000,000 transistors in this same thumbnail sized piece of silicon.
It's humorous to remember that in between the Stretch machine (which would be called a mainframe today) and the Apple I (a desktop computer) there was an entire industry segment referred to as mini-computers such as the following PDP-12 computer of 1969:
The first computer bug
In 1953 Grace Hopper invented the first high-level language, "Flow-matic". This language eventually became COBOL which was the language most affected by the infamous Y2K problem. A high-level language is designed to be more understandable by humans than is the binary language understood by the computing machinery. A high-level language is worthless without a program -- known as a compiler -- to translate it into the binary language of the computer and hence Grace Hopper also constructed the world's first compiler. Grace remained active as a Rear Admiral in the Navy Reserves until she was 79 (another record).
9:25 AM 0 Comments
The Mark I operated on numbers that were 23 digits wide. It could add or subtract two of these numbers in three-tenths of a second, multiply them in four seconds, and divide them in ten seconds. Forty-five years later computers could perform an addition in a billionth of a second! Even though the Mark I had three quarters of a million components, it could only store 72 numbers! Today, home computers can store 30 million numbers in RAM and another 10 billion numbers on their hard disk. Today, a number can be pulled from RAM after a delay of only a few billionths of a second, and from a hard disk after a delay of only a few thousandths of a second. This kind of speed is obviously impossible for a machine which must move a rotating shaft and that is why electronic computers killed off their mechanical predecessors.
On a humorous note, the principal designer of the Mark I, Howard Aiken of Harvard, estimated in 1947 that six electronic digital computers would be sufficient to satisfy the computing needs of the entire United States. IBM had commissioned this study to determine whether it should bother developing this new invention into one of its standard products (up until then computers were one-of-a-kind items built by special arrangement). Aiken's prediction wasn't actually so bad as there were very few institutions (principally, the government and military) that could afford the cost of what was called a computer in 1947. He just didn't foresee the micro-electronics revolution which would allow something like an IBM Stretch computer of 1959:
One of the primary programmers for the Mark I was a woman, Grace Hopper. Hopper found the first computer "bug": a dead moth that had gotten into the Mark I and whose wings were blocking the reading of the holes in the paper tape. The word "bug" had been used to describe a defect since at least 1889 but Hopper is credited with coining the word "debugging" to describe the work to eliminate program faults
9:01 AM 0 Comments
You can see the 50 ft rotating shaft in the bottom of the prior photo. This shaft was a central power source for the entire machine. This design feature was reminiscent of the days when waterpower was used to run a machine shop and each lathe or other tool was driven by a belt connected to a single overhead shaft which was turned by an outside waterwheel.
10:02 AM 0 Comments
IBM continued to develop mechanical calculators for sale to businesses to help with financial accounting and inventory accounting. One characteristic of both financial accounting and inventory accounting is that although you need to subtract, you don't need negative numbers and you really don't have to multiply since multiplication can be accomplished via repeated addition.
2:52 PM 0 Comments
But the U.S. military desired a mechanical calculator more optimized for scientific computation. By World War II the U.S. had battleships that could lob shells weighing as much as a small car over distances up to 25 miles. Physicists could write the equations that described how atmospheric drag, wind, gravity, muzzle velocity, etc. would determine the trajectory of the shell. But solving such equations was extremely laborious. This was the work performed by the human computers. Their results would be published in ballistic "firing tables" published in gunnery manuals. During World War II the U.S. military scoured the country looking for (generally female) math majors to hire for the job of computing these tables. But not enough humans could be found to keep up with the need for new tables. Sometimes artillery pieces had to be delivered to the battlefield without the necessary firing tables and this meant they were close to useless because they couldn't be aimed properly. Faced with this situation, the U.S. military was willing to invest in even hair-brained schemes to automate this type of computation.
One early success was the Harvard Mark I computer which was built as a partnership between Harvard and IBM in 1944. This was the first programmable digital computer made in the U.S. But it was not a purely electronic computer. Instead the Mark I was constructed out of switches, relays, rotating shafts, and clutches. The machine weighed 5 tons, incorporated 500 miles of wire, was 8 feet tall and 51 feet long, and had a 50 ft rotating shaft running its length, turned by a 5 horsepower electric motor. The Mark I ran non-stop for 15 years, sounding like a roomful of ladies knitting. To appreciate the scale of this machine note the four typewriters in the foreground of the following photo.
10:53 AM 0 Comments
The patterns on Jacquard's cards were determined when a tapestry was designed and then were not changed. Today, we would call this a read-only form of information storage. Hollerith had the insight to convert punched cards to what is today called a read/write technology. While riding a train, he observed that the conductor didn't merely punch each ticket, but rather punched a particular pattern of holes whose positions indicated the approximate height, weight, eye color, etc. of the ticket owner. This was done to keep anyone else from picking up a discarded ticket and claiming it was his own (a train ticket did not lose all value when it was punched because the same ticket was used for each leg of a trip). Hollerith realized how useful it would be to punch (write) new cards based upon an analysis (reading) of some other set of cards. Complicated analyses, too involved to be accomplished during a single pass thru the cards, could be accomplished via multiple passes thru the cards using newly printed cards to remember the intermediate results. Unknown to Hollerith, Babbage had proposed this long before.
Hollerith's technique was successful and the 1890 census was completed in only 3 years at a savings of 5 million dollars. Interesting aside: the reason that a person who removes inappropriate content from a book or movie is called a censor, as is a person who conducts a census, is that in Roman society the public official called the "censor" had both of these jobs.
Hollerith built a company, the Tabulating Machine Company which, after a few buyouts, eventually became International Business Machines, known today as IBM. IBM grew rapidly and punched cards became ubiquitous. Your gas bill would arrive each month with a punch card you had to return with your payment. This punch card recorded the particulars of your account: your name, address, gas usage, etc. (I imagine there were some "hackers" in these days who would alter the punch cards to change their bill). As another example, when you entered a toll way (a highway that collects a fee from each driver) you were given a punch card that recorded where you started and then when you exited from the toll way your fee was computed based upon the miles you drove. When you voted in an election the ballot you were handed was a punch card. The little pieces of paper that are punched out of the card are called "chad" and were thrown as confetti at weddings. Until recently all Social Security and other checks issued by the Federal government were actually punch cards. The check-out slip inside a library book was a punch card. Written on all these cards was a phrase as common as "close cover before striking": "do not fold, spindle, or mutilate". A spindle was an upright spike on the desk of an accounting clerk. As he completed processing each receipt he would impale it on this spike. When the spindle was full, he'd run a piece of string through the holes, tie up the bundle, and ship it off to the archives. You occasionally still see spindles at restaurant cash registers.
9:08 AM 0 Comments
Babbage was not deterred, and by then was on to his next brainstorm, which he called the Analytic Engine. This device, large as a house and powered by 6 steam engines, would be more general purpose in nature because it would be programmable, thanks to the punched card technology of Jacquard. But it was Babbage who made an important intellectual leap regarding the punched cards. In the Jacquard loom, the presence or absence of each hole in the card physically allows a colored thread to pass or stops that thread (you can see this clearly in the earlier photo). Babbage saw that the pattern of holes could be used to represent an abstract idea such as a problem statement or the raw data required for that problem's solution. Babbage saw that there was no requirement that the problem matter itself physically pass thru the holes.
Furthermore, Babbage realized that punched paper could be employed as a storage mechanism, holding computed numbers for future reference. Because of the connection to the Jacquard loom, Babbage called the two main parts of his Analytic Engine the "Store" and the "Mill", as both terms are used in the weaving industry. The Store was where numbers were held and the Mill was where they were "woven" into new results. In a modern computer these same parts are called the memory unit and the central processing unit (CPU).
The Analytic Engine also had a key function that distinguishes computers from calculators: the conditional statement. A conditional statement allows a program to achieve different results each time it is run. Based on the conditional statement, the path of the program (that is, what statements are executed next) can be determined based upon a condition or situation that is detected at the very moment the program is running.
You have probably observed that a modern stoplight at an intersection between a busy street and a less busy street will leave the green light on the busy street until a car approaches on the less busy street. This type of street light is controlled by a computer program that can sense the approach of cars on the less busy street. That moment when the light changes from green to red is not fixed in the program but rather varies with each traffic situation. The conditional statement in the stoplight program would be something like, "if a car approaches on the less busy street and the more busy street has already enjoyed the green light for at least a minute then move the green light to the less busy street". The conditional statement also allows a program to react to the results of its own calculations. An example would be the program that the I.R.S uses to detect tax fraud. This program first computes a person's tax liability and then decides whether to alert the police based upon how that person's tax payments compare to his obligations.
Babbage befriended Ada Byron, the daughter of the famous poet Lord Byron (Ada would later become the Countess Lady Lovelace by marriage). Though she was only 19, she was fascinated by Babbage's ideas and thru letters and meetings with Babbage she learned enough about the design of the Analytic Engine to begin fashioning programs for the still unbuilt machine. While Babbage refused to publish his knowledge for another 30 years, Ada wrote a series of "Notes" wherein she detailed sequences of instructions she had prepared for the Analytic Engine. The Analytic Engine remained unbuilt (the British government refused to get involved with this one) but Ada earned her spot in history as the first computer programmer. Ada invented the subroutine and was the first to recognize the importance of looping. Babbage himself went on to invent the modern postal system, cowcatchers on trains, and the ophthalmoscope, which is still used today to treat the eye.
The next breakthrough occurred in America. The U.S. Constitution states that a census should be taken of all U.S. citizens every 10 years in order to determine the representation of the states in Congress. While the very first census of 1790 had only required 9 months, by 1880 the U.S. population had grown so much that the count for the 1880 census took 7.5 years. Automation was clearly needed for the next census. The census bureau offered a prize for an inventor to help with the 1890 census and this prize was won by Herman Hollerith, who proposed and then successfully adopted Jacquard's punched cards for the purpose of computation.
Hollerith's invention, known as the Hollerith desk, consisted of a card reader which sensed the holes in the cards, a gear driven mechanism which could count (using Pascal's mechanism which we still see in car odometers), and a large wall of dial indicators (a car speedometer is a dial indicator) to display the results of the count.
9:51 AM 0 Comments
Jacquard's technology was a real boon to mill owners, but put many loom operators out of work. Angry mobs smashed Jacquard looms and once attacked Jacquard himself. History is full of examples of labor unrest following technological innovation yet most studies show that, overall, technology has actually increased the number of jobs.
By 1822 the English mathematician Charles Babbage was proposing a steam driven calculating machine the size of a room, which he called the Difference Engine. This machine would be able to compute tables of numbers, such as logarithm tables. He obtained government funding for this project due to the importance of numeric tables in ocean navigation. By promoting their commercial and military navies, the British government had managed to become the earth's greatest empire. But in that time frame the British government was publishing a seven volume set of navigation tables which came with a companion volume of corrections which showed that the set had over 1000 numerical errors. It was hoped that Babbage's machine could eliminate errors in these types of tables. But construction of Babbage's Difference Engine proved exceedingly difficult and the project soon became the most expensive government funded project up to that point in English history. Ten years later the device was still nowhere near complete, acrimony abounded between all involved, and funding dried up. The device was never finished.
9:37 AM 0 Comments
In 1801 the Frenchman Joseph Marie Jacquard invented a power loom that could base its weave (and hence the design on the fabric) upon a pattern automatically read from punched wooden cards, held together in a long row by rope. Descendents of these punched cards have been in use ever since (remember the "hanging chad" from the Florida presidential ballots of the year 2000?
12:25 PM 0 Comments
Just a few years after Pascal, the German Gottfried Wilhelm Leibniz (co-inventor with Newton of calculus) managed to build a four-function (addition, subtraction, multiplication, and division) calculator that he called the stepped reckoner because, instead of gears, it employed fluted drums having ten flutes arranged around their circumference in a stair-step fashion. Although the stepped reckoner employed the decimal number system (each drum had 10 flutes), Leibniz was the first to advocate use of the binary number system which is fundamental to the operation of modern computers. Leibniz is considered one of the greatest of the philosophers but he died poor and alone.
Schickard's Calculating Clock
10:23 AM 0 Comments
In 1642 Blaise Pascal, at age 19, invented the Pascaline as an aid for his father who was a tax collector. Pascal built 50 of this gear-driven one-function calculator (it could only add) but couldn't sell many because of their exorbitant cost and because they really weren't that accurate (at that time it was not possible to fabricate gears with the required precision). Up until the present age when car dashboards went digital, the odometer portion of a car's speedometer used the very same mechanism as the Pascaline to increment the next wheel after each full revolution of the prior wheel. Pascal was a child prodigy. At the age of 12, he was discovered doing his version of Euclid's thirty-second proposition on the kitchen floor. Pascal went on to invent probability theory, the hydraulic press, and the syringe. Shown below is an 8 digit version of the Pascaline, and two views of a 6 digit version:
A Leonardo da Vinci drawing showing gears arranged for computing
10:20 AM 0 Comments
The first gear-driven calculating machine to actually be built was probably the calculating clock, so named by its inventor, the German professor Wilhelm Schickard in 1623. This device got little publicity because Schickard died soon afterward in the bubonic plague
3:41 PM 0 Comments
In 1617 an eccentric (some say mad) Scotsman named John Napier invented logarithms, which are a technology that allows multiplication to be performed via addition. The magic ingredient is the logarithm of each operand, which was originally obtained from a printed table. But Napier also invented an alternative to tables, where the logarithm values were carved on ivory sticks which are now called Napier's Bones.
3:39 PM 0 Comments

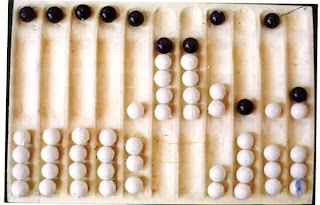

The abacus was an early aid for mathematical computations. Its only value is that it aids the memory of the human performing the calculation. A skilled abacus operator can work on addition and subtraction problems at the speed of a person equipped with a hand calculator (multiplication and division are slower). The abacus is often wrongly attributed to China. In fact, the oldest surviving abacus was used in 300 B.C. by the Babylonians. The abacus is still in use today, principally in the far east. A modern abacus consists of rings that slide over rods, but the older one pictured below dates from the time when pebbles were used for counting (the word "calculus" comes from the Latin word for pebble).
3:35 PM 0 Comments
The first computers were people! That is, electronic computers (and the earlier mechanical computers) were given this name because they performed the work that had previously been assigned to people. "Computer" was originally a job title: it was used to describe those human beings (predominantly women) whose job it was to perform the repetitive calculations required to compute such things as navigational tables, tide charts, and planetary positions for astronomical almanacs. Imagine you had a job where hour after hour, day after day, you were to do nothing but compute multiplications. Boredom would quickly set in, leading to carelessness, leading to mistakes. And even on your best days you wouldn't be producing answers very fast. Therefore, inventors have been searching for hundreds of years for a way to mechanize (that is, find a mechanism that can perform) this task.
